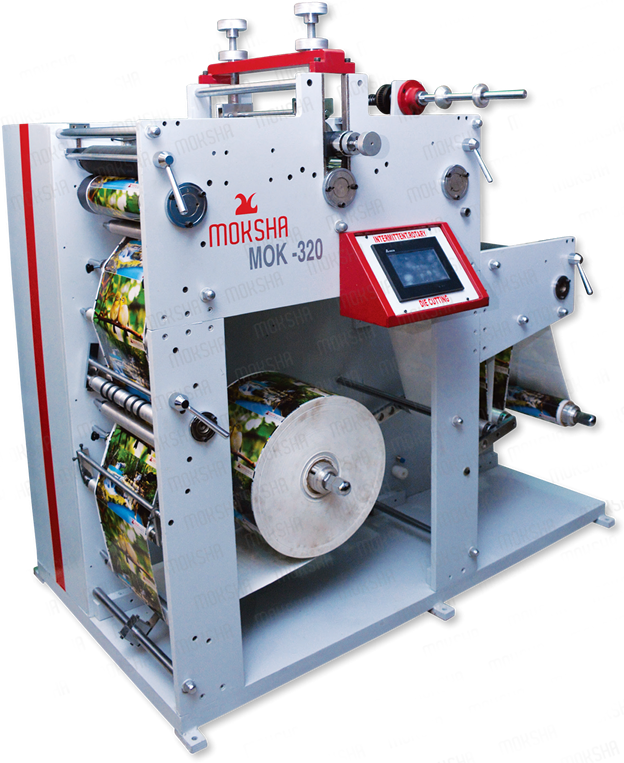

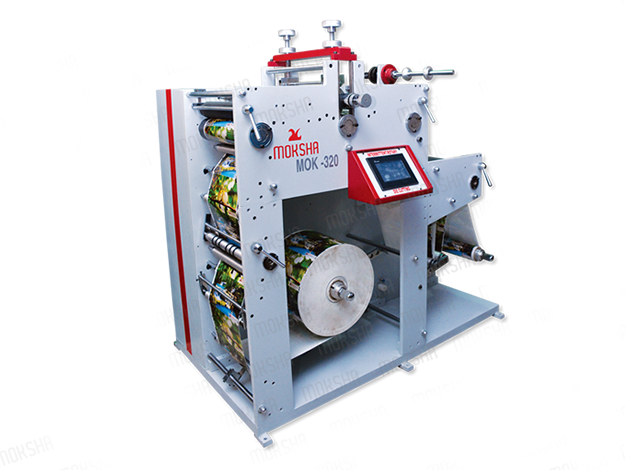

- Intermittent Rotary Die Cutting Machine
Technical Specification
- Maximum Web width : 320 mm
- Die Cutting Precision : Better than 0.2 mm
- Max. Repeat : Variable from 30 mm to 340 mm
- Max. Speed : 200 IPM (Intermittent Mode) / minute
(Depend on length to length)
- Max. Winding & Unwinding Diameter : 600 mm (2000 mts roll)
- Web Length in machine : Less thant 4 meters
- Typical set up time : Less than 5 minutes
- Typical set up wastage : Less than 5 meters
- Power Consumption : 7 Kw
- Machine Dimension : 1900 mm x 1170 mm x 1730 mm (LxWxH)
- Machine Weight : About 1500 Kg
- Color Mark Sensor : Multi colour
